Archer TGX-8/75

thermal imaging binocular

Archer TGX-8/75

Detection - 3 650 m
Recognition - 910 m
Identification - 450 m
Under ideal conditions; 12 µm; Johnson‘s Criteria @ 50% probability

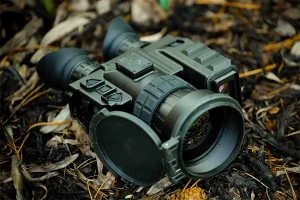

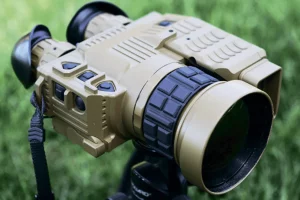

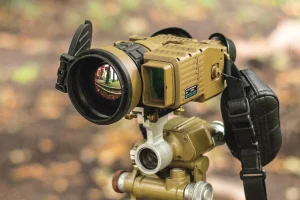

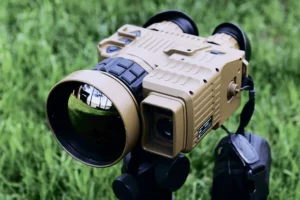

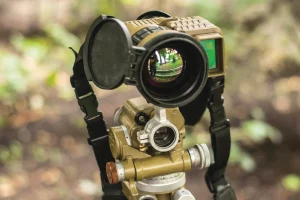

Thermal imaging binocular Archer TGX-8/75 is an ultramodern compact optical device designed for monitoring and observing areas in limited visibility conditions: poor lighting, smoke, fog, and objects hidden by vegetation or merged with underlying terrain. A distinctive feature of this binocular is an integrated compact laser rangefinder of 1550 nm that accurately measures distance on the distant range.

The high-performance capabilities of the optical system, an extended set of functions and the ergonomic design of Archer TGX-8/75 make it an indispensable device for a wide range of applications.

The device is equipped with a highly sensitive passive receiver of a far infrared band (LWIR) with resolution and sensitivity within 20-30 mK. The binocular has two built-in colour high-resolution microdisplays and eyepieces with diopter adjustment and the ability to adjust the distance between the eyes.

Several set colour schemes allow choosing the necessary display option depending on the tasks performed.

An optical circuitry of Archer TGX-8/75 provides 3x optical magnification (using a detector with 640 х 512 resolution).

The device‘s display indicates operation modes, device status, and battery discharge. There are also modes of brightness and contrast control.

The device is equipped with proximity sensors that much reduce the risk of disclosure.

Archer TGX-8/75 design comes in a shockproof, waterproof plastic housing with conveniently arranged controls. Power is supplied via 6 AA-type batteries (lithium or rechargeable batteries).

Due to the high-tech electronics unit, excellent functional capacities of the device are realized by minimal dimensions and power consumption.

Detailed information

Technology Uncooled VOx Microbolometer
Resolution 640 x 512
Pixel size 12 µm
Operating wavelength 7.5-13.5 µm
Objective 75 mm
Objective F number F/1.0
Field of view 5.9° x 4.5°
Focusing range 5 m ÷ ∞
Eye relief 35 mm
Diopter correction -6 ÷ +2
Max. distance measured by LRF 5000 m
LRF wavelength 1550 nm
Frame rate 9/25 Hz (PAL) 8/30 Hz (NTSC)
Video output PAL or NTSC, programmed
Display AMOLED, 800 x 600
Interface USB
Starting time ≤10 sec
Temperature range -30°C ÷ +55°C
Operating time, no less than 6 h
Operating time from redundant power supply, no less than 8 h
Dimensions (L x W x H) 220 x 146 x 104 mm
Weight 1.5 kg
Protection class IP67
GPS Multi-band GNSS receiver, high precision
DMC High precision digital magnetic compass
GPS and built-in compass data Provide real-time integration with maps
  • USB interface for programming and device control
  • 2x, 3x, 4x, 6x digital zoom
  • Sensitivity settings of the detector
  • Different colour schemes for image refinement
  • Integrated laser rangefinder
  • Built-in compass and accelerometer
  • Built-in video module
  • Manual and automatic calibration of the detector
  • Acquisition of coordinates, direction and distance of target
  • Thermal imaging binocular ARCHER-LPP TGX-8/75
  • AA-type rechargeable batteries – 6 pcs
  • Charger 220V, Vehicle charger 12V
  • USB cable, Neck strap, User’s manual, Case, and Bag
  • Optional: Redundant power supply RBP-8
